The Piezoconcept controller includes ultra low noise and highly linear electronics, closed-loop control (PID) leading to a movement free of positioning errors.
Our controller offers three different ways of control that can be used simultaneaously :

• Voltage control : an analogue input (BNC) located on the front panel of the controller allows to control the position of the stage by using voltage. Different ranges are possible : (0-10V, -5V/+5V, or -10V/+10V)
• As an option, the USB interface allows to control the position of the stage by using a computer. The USB connector is located on the front panel of the 1-axis controller or on the back panel of the 2/3 axis controller. It comes with 4 TTL outputs ( that can be configured also as inputs)
• As an option, it is also possible to control the position manually by using a 10-turns potentiometer located on the front panel. This option comes as standard on the 1-axis controller.

		1 Axis Controller

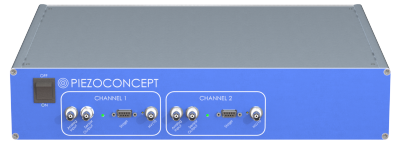

		2 Axis Controller

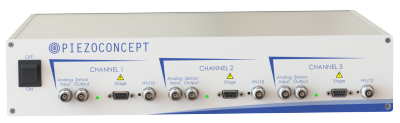

		3 Axis Controller

Main characteristics of the USB interface :

- Four channels DAC : depending on the number of axis, one, two or three channels are used. Upon request, the remaining DAC(s) can be used to send a command voltage (through a BNC) to an external device.

- Four channels  ADC : depending on the number of axis, one, two or three channels are used. Upon request, the remaining ADC(s) can be used to acquire a signal between 0 and 10V (through a BNC) from an external device.

- Four TTL outputs (through BNC). Upon request, those can be also configured as inputs

- Computer waveform generation and position data logging with internal memory for up to 65000 positions

Advanced scanning mode

Our USB interface offers full scanning functionnalities  :

- SWIFT mode : 1D Line scan, 2D Image scan, 3D Volume scan

- FRAP mode : With this mode, you can get the system to scan over the area of a polygon. As an example, in Micromanager, you can draw regions of interest on an image. You can then control the piezostage through the MM device adapter.

- Arbitrary 3D laser writing mode : This mode is ideal to scribe a photoreactive material.

  Software compatibility

Our controller is supported by almost any softwares on the market :

• Labview
• Micromanager
• C/C++ (DLL are provided)
• NIS Element
• Visiview
• Metamorph
• Matlab
• Python



Compatible operating systems :

• Windows
• LINUX
• Mac OS X

  All of our piezostages are also compatible with all the controllers of ASI Imaging  :
- The MS2000 (can support only 1-axis stage)
- The Tiger Controller (can support any multi-axis stages)
